Vending Machine Payment Systems Explained: Card, NFC, QR & Cash Integration

Choosing Between Card, NFC, QR, and Cash

The best payment configuration is the one that lets customers complete a purchase with the least friction while keeping the machine practical to operate. That sounds obvious, but it rules out a surprising number of poorly planned builds. A machine does not become more useful simply because four payment logos appear beside the screen.

For this comparison, I’m prioritizing transaction speed, payment availability, controller compatibility, maintenance burden, failure recovery, and transaction visibility. Those factors affect daily operation far more than the appearance of the reader or the length of its feature list.

If I were choosing a standard configuration for a new general-purpose machine, I’d use a card terminal with contactless capability as the primary cashless layer. That gives one customer interface for chip cards, contactless cards, and supported NFC wallets. I’d add QR when it has a defined role in the software, and I’d add cash only when the expected payment mix justifies the extra hardware and service work.

There is also a difference between adding a payment method and integrating it correctly. A bill validator can accept money but still be a poor installation if the machine cannot manage change. A QR screen can display a code but still be unsafe if the software cannot match the payment to the active order. A card terminal can show “approved” while a badly designed controller flow leaves the customer without a product.

Payment therefore has to be specified together with the machine controller, touchscreen software, dispensing method, network connection, delivery sensors, and remote-management platform. That is the starting point for reliable vending machine payment systems.

How a Vending Payment System Is Actually Connected

The reader visible on the front door does not run the machine by itself. A payment transaction normally passes through several components, and each one has a different job. Understanding those roles makes supplier comparisons much easier because it prevents every payment problem from being blamed on the card reader.

What Each Part of the Payment Stack Does

A well-planned machine keeps these responsibilities separate. The payment terminal should not have to guess whether a motor successfully released a product. The vending controller should not have to store sensitive card data simply to know that an authorized transaction exists.

The systems meet through transaction states. A customer selects a product, the machine establishes the amount, payment begins, a valid payment state is returned, the controller authorizes delivery, and the result of the vend is recorded. If something goes wrong, the machine needs enough information to locate the failure.

The Transaction States Worth Recording

These states become even more useful when the same order ID appears in the touchscreen log, vending-controller record, payment record, and remote-management platform. A technician can then follow one purchase through the entire chain instead of comparing several unrelated timestamps.

Zhongda Smart’s payment and remote-management information describes configurable support for card, NFC, QR, cash, transaction status, sales reporting, and connected machine monitoring. The useful part of that configuration is not the number of payment options. It is the ability to connect payment information with machine operation.

Card Payment Integration

A vending machine card reader has two jobs from the customer’s point of view: recognize the payment method and produce a clear result quickly. Behind the panel, however, the card transaction can involve the terminal application, payment processor, network, merchant configuration, controller communication, and the machine’s own vend logic.

A physical connector is not proof of payment compatibility. The reader still has to match the machine interface, terminal configuration, firmware, processor relationship, payment application, and merchant setup. This is why buying a reader separately and asking the machine supplier to “make it work” can create unnecessary integration work.

Contact Chip and Contactless Card Acceptance

Chip-card acceptance and contactless payment use different physical interactions, although both may be supported by the same unattended terminal. Contact chip requires the card to communicate through the reader contacts. Contactless payment exchanges the required information over a short-range interface when the card or compatible device is presented near the terminal.

EMVCo currently reports 15.6 billion cards using EMV Specifications and states that97% of card-present chip transactions are EMV-enabled.^[1] For vending equipment, those figures reinforce a practical point: chip and contactless acceptance should be approached as established payment infrastructure with defined terminal and processing requirements.

The machine manufacturer does not replace the payment provider’s certification process. A vending cabinet may physically support a terminal, but the exact payment configuration still depends on the payment service and its approved hardware, software, and merchant setup.

Authorization Is Not the Same as a Final Settlement Record

Payment terminology matters when diagnosing failed vends. An approved transaction message does not always mean that every later financial step has already been completed. The exact sequence depends on the processor, terminal configuration, and transaction type.

Terminology and timing are not identical across processors. The vending application should therefore keep the processor’s transaction reference and the machine’s order reference instead of assuming that one generic “approved” flag contains everything needed for later support.

Reader Placement Affects Completion

The terminal should sit where a customer naturally looks after making a selection. It should not be hidden under a shelf edge, mounted so low that a tap becomes awkward, or placed far enough from the screen that the payment sequence feels disconnected from the order.

Clear physical placement also helps contactless use. The tap target should be visible, and the cabinet construction around the reader should follow the terminal supplier’s mounting requirements. Reader depth, brackets, cable routing, antenna behavior, front-panel thickness, and service access all belong in the cabinet drawing.

If I were choosing between a cleaner-looking hidden installation and a slightly more visible installation with better access and clearer customer guidance, I’d choose the second. The payment terminal is part of the checkout interface, not decorative hardware.

Questions to Confirm Before Approving a Card Reader

• Which terminal model is being installed?

• Does it support contact and contactless acceptance as required?

• Who supplies the payment-processing service?

• Who completes merchant onboarding?

• How does the terminal communicate with the vending controller?

• What happens if the transaction is approved but the vend fails?

• Can the operator identify the processor transaction from the machine sales record?

• Can the terminal be restarted or managed remotely?

• How are terminal software and firmware updates handled?

• What information is required when replacing a failed reader?

Those questions uncover more about the quality of vending machine payment systems than asking only whether a machine “takes credit cards.”

NFC and Contactless Payment

NFC, or Near Field Communication, is the short-range technology behind many tap interactions. In vending, an NFC-capable payment terminal can be used with compatible contactless cards, phones, watches, and other supported payment devices. The financial transaction still depends on the payment credential, terminal software, processor, and payment service behind that tap.

This distinction prevents a common specification mistake. “NFC enabled” does not mean every wallet or payment program is automatically supported. The terminal must be configured for the payment methods that are actually intended to work.

Why NFC Fits Vending So Well

Most vending purchases are short. The customer does not want to navigate a long checkout after deciding to buy a drink, snack, accessory, or boxed product. Contactless payment keeps the physical interaction small: select, tap, receive confirmation, collect the product.

The NFC Forum’s 2024 usage study reported that more than 80% of surveyed participants had used a smartphone or smartwatch to make a contactless payment.^[2] For machine design, the useful conclusion is straightforward. A contactless reader should be treated as a normal checkout component when fast cashless payment matters.

A Fast Tap Can Still Produce a Slow Vend

The radio interaction may be quick while the complete purchase is not. The terminal still needs to process the payment flow, the vending controller has to receive the correct transaction state, and the dispensing mechanism has to react.

A useful performance measurement begins when the customer presents the payment method and ends when the machine gives a clear approval or decline. A second measurement begins at approval and ends when the product reaches the pickup position or the correct locker becomes available.

That separation shows whether a slow transaction comes from payment processing or from the vending mechanism. Without it, a machine with slow motor movement may be blamed on the NFC reader, while a machine with slow payment communication may be blamed on the touchscreen.

Reader Location and Customer Feedback

Customers should not have to move a phone around the front panel looking for the active area. Use a clear tap symbol, keep instructions close to the terminal, and make the payment result visible from the normal standing position.

The screen also needs to stay synchronized with the terminal. If the reader has approved payment but the display still says “Tap your card,” the customer may tap again. If the payment interface disappears before the reader has finished, the customer may assume the transaction failed.

Good contactless vending therefore depends on both terminal behavior and interface timing. The cleanest customer journey is usually the one with the fewest ambiguous states.

QR Payment Integration

QR payment can be highly flexible because the payment flow can connect a vending machine to accounts, memberships, stored balances, promotions, loyalty rules, pickup orders, and custom software. That flexibility also means the transaction logic deserves more attention than simply placing a QR code on the touchscreen.

EMVCo defines both merchant-presented and consumer-presented QR payment structures.^[3] In merchant-presented mode, the machine or merchant side displays the code and the customer scans it. In consumer-presented mode, the customer displays the code and merchant equipment reads it.

Static QR Codes and Dynamic QR Codes Solve Different Problems

A static QR code contains the same underlying information each time it appears. It can open a fixed payment destination, account page, support page, or application. It is simple, but the code itself may not uniquely identify the current vending transaction.

A dynamic QR code can be generated for one order. The associated transaction can include a unique order ID, expected amount, machine reference, product reference, expiration time, or other data needed to match the payment to a specific purchase.

For unattended selling, I’d recommend dynamic transaction matching whenever the payment workflow supports it. The machine should know that this confirmed payment belongs to this active order rather than treating an amount alone as proof.

A QR Scan Must Never Be Treated as Payment Confirmation

Scanning a code only begins or advances the payment process. Product delivery should wait until the machine or its backend receives the required verified payment result.

A reliable merchant-presented flow can work like this:

1. The customer selects a product.

2. The machine confirms the current product price and availability.

3. The software creates a unique order ID.

4. A QR payment session is created for that order.

5. The customer scans the code.

6. The customer completes the required payment steps.

7. The payment backend receives the transaction result.

8. The confirmed amount and transaction identity are checked against the active order.

9. The machine receives a verified paid state.

10. The controller authorizes delivery.

11. The vend result is recorded against the same order.

This sequence avoids a dangerous shortcut: “code scanned, therefore dispense.” The scan and the payment are separate events.

Duplicate Callback Protection

Payment backends may retry a notification when they do not receive the expected acknowledgement. The vending application has to assume that the same payment notification could arrive more than once.

The order ID should therefore be idempotent at the vend layer. In practical terms, if transactionORD-10482 is reported as paid twice because the backend repeats the same notification, the second message must not release another product.

A simple rule is useful:

This type of duplicate protection is more important than the visual design of the QR image. A beautiful payment screen cannot compensate for a backend that can accidentally generate two vends from one payment.

Validate the Amount as Well as the Transaction ID

The vending backend should compare the confirmed amount with the active order amount before issuing the vend command. A correct transaction reference with an unexpected value should be treated as an exception rather than silently accepted.

For example, if the active order is $4.50 and the payment status reports $0.45, matching only the order ID would not be enough. The transaction needs both identity and amount validation according to the payment service’s design.

Use Expiration Times

A payment session should not remain open indefinitely after the customer walks away. Dynamic QR codes benefit from a defined expiration period so that late payments and abandoned transactions cannot attach themselves to a new purchase.

When a session expires, the screen should make that status obvious. A customer who still wants the item can begin a fresh transaction with a new order reference.

Where QR Adds Real Value

• Membership pricing

• Stored-value accounts

• Loyalty points and promotional rewards

• Coupon redemption

• Pre-order and pickup flows

• Account-based purchasing

• Product reservation

• Custom branded checkout

QR works best when it has a reason to exist beyond “another way to pay.” When it connects payment to a useful software function, it can become one of the most flexible components in vending machine payment systems.

Cash, Bills, Coins, and Change

Cash payment is mechanically different from card, NFC, and QR. A bill validator has to pull physical currency through a sensing path, determine whether it is acceptable, route it into storage, and report the value to the controller. A coin mechanism may have to recognize several denominations while also maintaining coins that can be returned as change.

That physical handling adds wear, cleaning, collection, and reconciliation work. It also gives cash an advantage that digital payment does not automatically provide: it can remain usable without an external payment authorization connection when the machine itself is operating normally.

How a Bill Validator Fits Into the Machine

The bill validator reports accepted credit to the vending controller. Depending on the hardware and transaction, a bill may temporarily remain in an intermediate state before the machine commits to accepting it. Accepted currency is then routed into a cashbox or stacker.

Service access matters because bill paths get dirty. Dust, residue, damaged notes, foreign objects, worn rollers, and mechanical wear can reduce acceptance performance over time. The validator should be removable without dismantling half of the machine door.

Coin Change Needs Its Own Logic

A machine that gives change needs enough usable coin combinations for the expected purchases. It should not accept a bill and discover afterward that the required change cannot be returned.

Consider a product priced at $2.50:

If change inventory is too low, the user interface can enter an exact-payment state, limit accepted denominations, or disable cash temporarily depending on the installed hardware and controller logic.

Cash Is Not a Fee-Free Payment Method

There may be no card-processing percentage on a coin, but the operator still pays for cash handling. Bills and coins have to be collected, counted, reconciled, secured, transported, and replenished as change. Validators and coin mechanisms also need more physical maintenance than an NFC antenna.

In my view, cash should be evaluated by total operating cost rather than by transaction fee alone. For one deployment, network-independent sales may justify the service work. For another, the cost of collection and mechanical maintenance may make a cashless configuration more practical.

Cash Hardware Questions Worth Confirming

• Does the machine accept bills, coins, or both?

• Can the coin unit return change?

• How does the controller know when change inventory is low?

• Can the machine enter an exact-payment mode?

• Can cash totals be reported through remote management?

• How is the cashbox secured?

• How quickly can the validator be removed for cleaning?

• What happens to inserted credit after a power interruption?

• Can cash remain available when digital payment is unavailable?

Card vs. NFC vs. QR vs. Cash

The payment method should match the selling job. A fast snack machine has different checkout priorities from a machine selling expensive boxed products. A membership-based machine can benefit from a QR account flow that would only add friction to a simple drink purchase.

When a Hybrid Payment Setup Is Worth the Extra Hardware

A practical hybrid configuration often uses one card terminal for chip and NFC, adds QR through the touchscreen, and installs cash only when the expected payment mix supports the extra maintenance. This gives customers several ways to pay without turning the front panel into a collection of unrelated payment devices.

Hybrid payment also creates redundancy. If QR is temporarily unavailable but the card terminal remains active, the machine can still sell. If digital payment loses network access while the cash system is healthy, cash may continue to operate. The interface should show only payment methods that are actually available at that moment.

The software also needs to prevent two payment methods from attaching themselves to one order. Once a card transaction is active, an overlapping QR session should not create another valid payment path for the same product unless the software was deliberately designed for that behavior.

If the customer cancels, the active payment state should be cleared cleanly. If payment has already been approved, cancellation is no longer just a screen-navigation issue; the machine must follow the correct financial transaction process.

MDB and the Vending Machine Controller

Many vending machines use MDB/ICP, the Multi-Drop Bus/Internal Communication Protocol, to exchange information between the vending machine controller and peripherals such as cashless devices, bill validators, and coin mechanisms. NAMA released MDB Version 4.3 with changes focused on cashless-device functions, including features related to remote vending and multi-vend or partial-refund behavior.^[4]

MDB gives vending equipment a defined way to exchange transaction information, but it should not be confused with the financial payment network. The vending controller does not become a bank authorization system simply because it communicates with a card reader over MDB.

What the Vending Machine Controller Does

The VMC coordinates the machine-side sales process. It can track available credit, receive selection information, determine whether a vend is allowed, command the appropriate delivery mechanism, and report the vend result according to the machine design.

A payment device can tell the controller that an approved cashless transaction is available. The controller can then decide whether the selected item is valid and whether the appropriate vend command should run.

What MDB Does Not Do

MDB does not replace the processor, acquirer, payment application, security controls, network connection, touchscreen order logic, or product-delivery sensors. It also does not guarantee that two devices with MDB labels will work perfectly together without configuration.

Protocol compatibility is one layer. The terminal still needs the correct payment service, machine configuration, and transaction workflow.

Why MDB Version Details Matter in Custom Projects

Newer vending functions can require more than a simple single-item cashless session. Basket sales, remote selection, refunds, and modern touchscreen flows can place additional demands on how the machine and cashless device exchange information.

Before a custom build is approved, the manufacturer and payment provider should confirm which functions are actually supported by both sides. A protocol document may define a capability that a particular controller or terminal configuration has not implemented.

Touchscreen Machines Can Add Another Software Layer

A smart touchscreen machine may create the order in an application before the VMC receives the final vend instruction. QR payment may use a backend API rather than a traditional cashless peripheral flow. Remote orders may arrive through a server while local orders begin at the touchscreen.

That architecture can work well as long as ownership of the transaction state is clear. The project documentation should identify where the price originates, where the order ID is created, who confirms payment, who authorizes delivery, and which system closes the sale.

The Complete Payment-to-Vend Sequence

A strong payment integration can be understood as one traceable sequence. Each step should either complete, fail with a known reason, or time out into a defined recovery state. If the system cannot identify which step failed, support becomes much harder once machines are operating unattended.

1. The Customer Selects a Product

The touchscreen, keypad, or other interface receives the selection. The software maps that selection to the correct physical cargo lane, locker, conveyor position, elevator location, or dispensing device.

2. Product Availability Is Checked

The system confirms that the selection is currently sellable. Inventory software may say that a product exists, but machine-side conditions still matter. A disabled lane, locked motor, open service door, or other fault can make a nominally available item unsuitable for sale.

3. The Selling Price Is Confirmed

The active price should come from a controlled source. If the touchscreen displays one amount while the vending controller or payment terminal expects another, checkout can fail or create reconciliation problems.

4. A Unique Order Reference Is Created

The order reference ties the user interface, payment result, vend command, and final sales record together. This is particularly important for QR and API-based payment flows, but it is also useful for card troubleshooting.

5. The Payment Session Opens

The customer chooses a payment method or presents one directly. The machine should prevent unrelated payment sessions from attaching themselves to the same order.

6. Payment Information Is Processed

For card and NFC, the terminal communicates through its configured payment service. For QR, the payment backend waits for the required confirmed status. For cash, the bill validator and coin mechanism report accepted credit.

7. The Required Payment State Is Reached

The machine receives enough verified information to proceed according to the selected payment method. A QR scan without payment confirmation does not qualify. A card presentation without approval does not qualify. An inserted but rejected bill does not qualify.

8. Vend Authorization Reaches the Controller

The controller now knows which product may be released. The transaction should still be tied to the original order reference so that a later motor result can be matched to the payment.

9. The Delivery Mechanism Runs

The machine may rotate a spiral, drive a belt, operate a conveyor, move an elevator, unlock a compartment, open a gate, or use another mechanism appropriate for the product.

10. Delivery Is Checked

Motor movement alone does not always prove that the customer received the item. Depending on the machine design, a drop sensor, optical sensor, door sensor, elevator-position signal, motor-current signal, or another feedback method can improve delivery verification.

11. The Financial Transaction Reaches Its Required Final State

The exact financial sequence depends on the payment provider. The machine-side software should keep the transaction reference needed for reconciliation, reversal, or refund if a problem appears later.

12. Inventory and Sales Records Are Updated

The successful vend reduces the appropriate product quantity and adds the sale to reporting. The record should include the machine, order ID, product, amount, payment method, timestamp, and vend result.

13. The Machine Returns to Idle

The interface clears the completed order and becomes ready for the next customer. Temporary payment states should not leak into the next transaction.

Payment-to-vend flow: Product selection → availability check → price confirmation → order ID → payment session → payment validation → vend authorization → dispensing → delivery confirmation → financial completion → inventory update → sales record → ready for next order.

If a machine can identify each of these stages, diagnosing a payment complaint becomes much easier. If all the operator sees is “transaction failed,” card issues, network timeouts, software errors, and mechanical jams become unnecessarily difficult to separate.

Failed Vends, Duplicate Payments, Reversals, and Refunds

The normal transaction path is only half of payment integration. The expensive problems usually appear when something happens out of sequence: payment is approved but a product jams, a callback arrives twice, the network disconnects at the wrong moment, or the machine restarts while a transaction is pending.

Payment Approved, Product Not Delivered

The first diagnostic question is whether the controller received a valid vend authorization. If it did, the investigation moves toward selection mapping, motors, conveyors, elevator movement, lockers, delivery sensors, and product loading.

If the payment system reports an approval but the controller never saw the corresponding vend request, the failure belongs between the payment layer and the vending controller rather than in the physical product lane.

A useful log entry might look like this:

Order ID: 10482
Product: B14
Amount: 4.50
Payment status: Approved
Controller vend request: Received
Motor command: Started
Delivery sensor: No confirmation
Final vend state: Failed
Financial action: Reversal requested

That record is far more useful than “customer says product did not come out.” It tells the technician that payment succeeded, the controller acted, and the failure happened during physical delivery.

Duplicate Card Presentation

A customer may tap twice because the first response appears slow. The interface and terminal should make the active payment state obvious enough that a second attempt is unnecessary.

If two distinct financial transactions do occur, the operator needs records that show whether one or two vending orders existed. Payment transaction IDs and machine order IDs make this investigation much faster.

Duplicate QR Notification

The same confirmed QR payment must never create a second product release simply because a backend notification is delivered twice. The machine should store the completed order ID and reject any repeated vend command tied to that same completed transaction.

Payment Arrives After a Timeout

This is a classic QR and networked-payment edge case. The machine closes the session because the expected confirmation did not arrive, but the payment service reports success a few seconds later.

The answer is not to keep every order open forever. The system needs an exception state. The payment can be recognized as belonging to an expired order, blocked from creating a late vend, and moved into the appropriate reconciliation or refund workflow.

Power Loss During a Transaction

After restart, the machine should not blindly assume that every pending transaction failed or succeeded. It should recover enough transaction information to determine which states are unresolved.

For a digital payment, the system may need to query the payment backend or terminal status. For cash, it may need to know whether physical credit had already been committed before power was lost. Recovery behavior should be tested rather than left to assumption.

Wrong Product Delivered

This is not technically a payment decline, but it becomes a payment-service problem for the customer. A correct $5 payment for product A followed by delivery of product B still requires customer support.

Selection-to-lane mapping therefore belongs in payment commissioning. The final transaction should identify the product the customer purchased and the physical channel the controller attempted to vend.

Reversal and Refund Logic Should Be Agreed Before Shipment

Do not wait for the first failed vend to decide who is responsible for refunding it. The operator, machine supplier, software provider, and payment service should know which system identifies the failure and which system can initiate the financial correction.

If automatic reversal is supported, define the triggering conditions carefully. A weak sensor should not generate refunds for successful deliveries. A confirmed mechanical failure should not require a customer to spend days proving that nothing arrived.

Payment Security, Connectivity, and Offline Behavior

Payment hardware sits in unattended equipment, often for long periods without anyone standing beside it. Security therefore includes payment-data protection, physical integrity, software maintenance, network access, account permissions, and reliable recovery after faults.

The PCI Security Standards Council describes PCI DSS as a baseline of technical and operational requirements designed to protect payment account data, and PCI DSS v4.0.1 remains the published current revision listed by the Council.^[5]

Keep Sensitive Payment Data Out of Machine Applications When It Is Not Needed

A vending application normally needs enough information to know that an order was paid and to reconcile that order later. It does not need unnecessary sensitive card data simply to release a bottle or open a locker.

Operational records can use the machine order reference, processor transaction reference, payment-method category, amount, timestamp, result, and error status. The payment provider should define which payment identifiers can be stored and displayed safely.

Physical Reader Inspection Matters

A card terminal should be mounted as security-sensitive equipment. Service staff should know what the legitimate reader, bracket, cable path, seals, fasteners, and front-panel fit look like.

Routine inspection can look for unexpected overlays, loose housings, damaged mounting points, unknown attachments, altered cables, broken seals, or unexplained changes in terminal behavior.

Separate Remote-Access Roles

A technician who needs machine-status information does not automatically need payment administration. A person who updates product prices does not automatically need access to terminal-management functions.

Remote-management accounts should follow controlled authentication and access rules. Software updates should also come through a documented process rather than ad hoc remote access.

Network Connectivity Is More Than a Signal Indicator

A machine can show an active cellular, Wi-Fi, or Ethernet connection and still be unable to complete a digital payment. DNS problems, packet loss, high latency, backend outages, expired credentials, firewall changes, certificate problems, and payment-application faults can all interrupt the transaction path.

Monitoring should therefore separate basic network status from payment-service reachability. “Modem online” and “terminal processing payments normally” are not the same metric.

Offline Card and NFC Behavior Depends on the Payment Service

Do not assume a powered card reader will continue approving transactions when its external connection fails. Some payment configurations may support controlled offline behavior under defined risk rules; others may require a live authorization path.

Offline processing can create financial risk because approval may be evaluated differently once connectivity returns. The allowed behavior must come from the selected payment provider, not from a general vending-machine setting.

QR Usually Requires a Confirmation Path

A QR workflow becomes difficult when the customer completes payment but the machine cannot receive the result. The software needs a defined response for that uncertainty rather than leaving the customer staring at “Processing.”

The machine can retry a status query, keep the order pending for a controlled period, show a support reference, or move the transaction into reconciliation according to the backend design. A late confirmation should not create an uncontrolled vend.

Cash Can Provide a Separate Failure Path

A bill or coin system can remain operational without a digital authorization network when the machine controller and cash hardware are healthy. This can make cash useful as a backup payment method, but that benefit has to be weighed against collection labor, change management, security, and mechanical maintenance.

Payment Monitoring and Troubleshooting

Remote payment visibility can reduce unnecessary vending machine repair visits because the operator can often identify which subsystem is failing before dispatching anyone. The objective is not simply to collect more data. The data needs to distinguish financial declines, communication errors, controller faults, and mechanical delivery failures.

Payment Metrics Worth Monitoring

Do Not Put Every Failure Into One “Payment Error” Bucket

A declined card is different from a processor timeout. A processor timeout is different from an MDB communication fault. An MDB fault is different from a jammed delivery lane after valid payment.

Those failures need separate categories. Otherwise the technician replaces a card reader when the actual problem is a controller cable, or investigates the payment backend when a delivery motor is failing.

Payment Troubleshooting Matrix

Payment Approved but No Vend: A Useful Diagnostic Order

Start by confirming that the payment really reached an approved state. Then check whether the vending controller received authorization. If the controller received it, confirm that the correct lane or mechanism was commanded. After that, inspect motor behavior and delivery-sensor feedback.

That order prevents random parts replacement. The card reader should not be changed merely because the customer paid by card before a spiral jammed.

Card Reader Powered but Unavailable

Power proves only that the terminal is energized. It does not prove that the reader is registered, online, correctly configured, able to reach its payment service, or communicating with the VMC.

Check terminal status, network state, controller communication, configuration, and recent error history before deciding that the hardware has failed.

QR Payment Confirmed on the Customer Side but Not the Machine

Compare the active order ID with the payment record. Confirm the amount. Then check whether the callback or status response reached the vending backend and whether the machine received the backend message before the session expired.

If the money is confirmed but the order is already closed, the software should move the transaction into a defined exception workflow rather than guessing whether to vend late.

Bill Validator Performance Drops Gradually

A gradual increase in bill rejection often points toward contamination or wear rather than software. Inspect and clean the bill path according to the validator manufacturer’s procedure, then review whether the accepted denomination configuration is still correct.

Recording the date of cash-device cleaning can be surprisingly useful. It gives the operator a simple way to connect changes in acceptance rate with service intervals.

Payment Hardware, Processing Fees, and Operating Cost

The real cost of vending machine payment systems is spread across several categories. Reader price is only the visible one. Integration, connectivity, transaction processing, cash handling, service labor, replacement hardware, software, and lost sales during downtime all belong in the calculation.

Payment Hardware

A machine may need a card/NFC terminal, modem, antennas, mounting bracket, bill validator, coin changer, barcode or QR scanner, touchscreen, controller interface, wiring harnesses, and power components. A merchant-presented QR flow shown on an existing touchscreen may require little additional front-panel hardware, but it still needs software and backend integration.

Integration Cost

Mechanical fit is only one part of integration. Engineering work can include front-panel design, cable routing, controller configuration, API development, payment-service setup, interface changes, transaction-state logic, refund handling, remote-reporting integration, and commissioning.

A custom OEM project benefits from solving these items during the design stage. Moving a reader position in a drawing is easier than modifying finished doors after production.

Payment Processing

Digital payment services can include percentage transaction charges, fixed per-transaction fees, terminal-management fees, gateway fees, subscriptions, connectivity charges, or other commercial terms. The exact structure comes from the selected payment provider.

A cheaper reader can be expensive over its service life if its transaction terms, reliability, or support are poor. Compare recurring cost as well as hardware purchase price.

Cash Handling

Cash avoids some digital processing charges but introduces other costs:

• Cash collection

• Counting and reconciliation

• Change preparation

• Bill-validator maintenance

• Coin-mechanism maintenance

• Cashbox handling

• Physical security

• Service visits caused by jams or low change

Downtime Belongs in the Payment Budget

If customers cannot complete checkout, a low transaction fee provides little value. Payment uptime should therefore be converted into commercial terms when comparing two systems.

Suppose a machine receives 1,000 legitimate checkout attempts in a month. One configuration completes 90% of them and another completes 95%. The difference is 50 completed transactions. At a $4.00 average sale, that is $200 in additional monthly revenue before product cost and payment expense.

The exact numbers will differ for every machine, but the calculation shows why reliability belongs in the payment decision.

A Practical Payment ROI Formula

Incremental contribution = additional completed vends × average sale × gross contribution percentage − added payment cost − added service cost

If payment hardware and integration add an upfront cost, a simple payback estimate can then compare that investment with the incremental monthly contribution created by improved checkout performance.

I’d recommend calculating the cost per successfully completed and reconciled vend rather than comparing payment fees in isolation. That metric gives reliability, processing cost, and failed transactions a place in the same calculation.

Fixed Fees Affect Low-Value Purchases Differently

A purely illustrative fee structure of 2.5% plus $0.10 per transaction produces very different effective percentages at different selling prices:

These numbers are only mathematical examples, not payment-provider quotations. They show why fixed charges can matter more when the product price is low.

Basket Purchases Can Change the Economics

A touchscreen machine that allows several products to be purchased in one transaction can spread a fixed payment cost across a larger basket. That feature needs more order logic because the controller must coordinate several vends, track partial failures, and connect the final financial amount to multiple products.

MDB Version 4.3 includes cashless changes related to basket and partial-refund functions, which is another reason to confirm the exact capabilities of the controller and payment device when multi-item checkout is planned.

Payment Decisions That Need to Be Locked Before Production

A vending machine manufacturer should not treat payment as a rectangular opening added to a finished front door. Payment affects cabinet drawings, wiring, controller configuration, touchscreen software, networking, service access, transaction logic, remote reporting, and factory testing.

Zhongda Smart’s OEM custom vending machine process includes payment and connectivity requirements during specification, followed by sample-build validation before production. That sequence is important because terminal choice can affect both the cabinet and the software long before a machine is ready to ship.

Lock the Terminal Model Early

The cabinet team needs the physical dimensions, mounting pattern, reader depth, front-panel cutout, cable location, power needs, and service-clearance requirements. Changing terminal families after metalwork is complete can force unnecessary rework.

Confirm Who Owns Each Part of the Payment Setup

Leaving any of these responsibilities as “the other supplier will handle it” usually creates delays during commissioning.

Specify the Dispensing Method Together With Payment

A spiral vending machine, conveyor machine, elevator machine, and locker machine do not confirm delivery in exactly the same way. Payment logic has to know what counts as a successful physical outcome.

A locker can log an unlock and door event. An elevator can report position or motion states. A spiral machine may use a drop sensor. The refund strategy should match the reliability of the machine’s delivery feedback.

A Zhongda Smart Multi-Payment Configuration Example

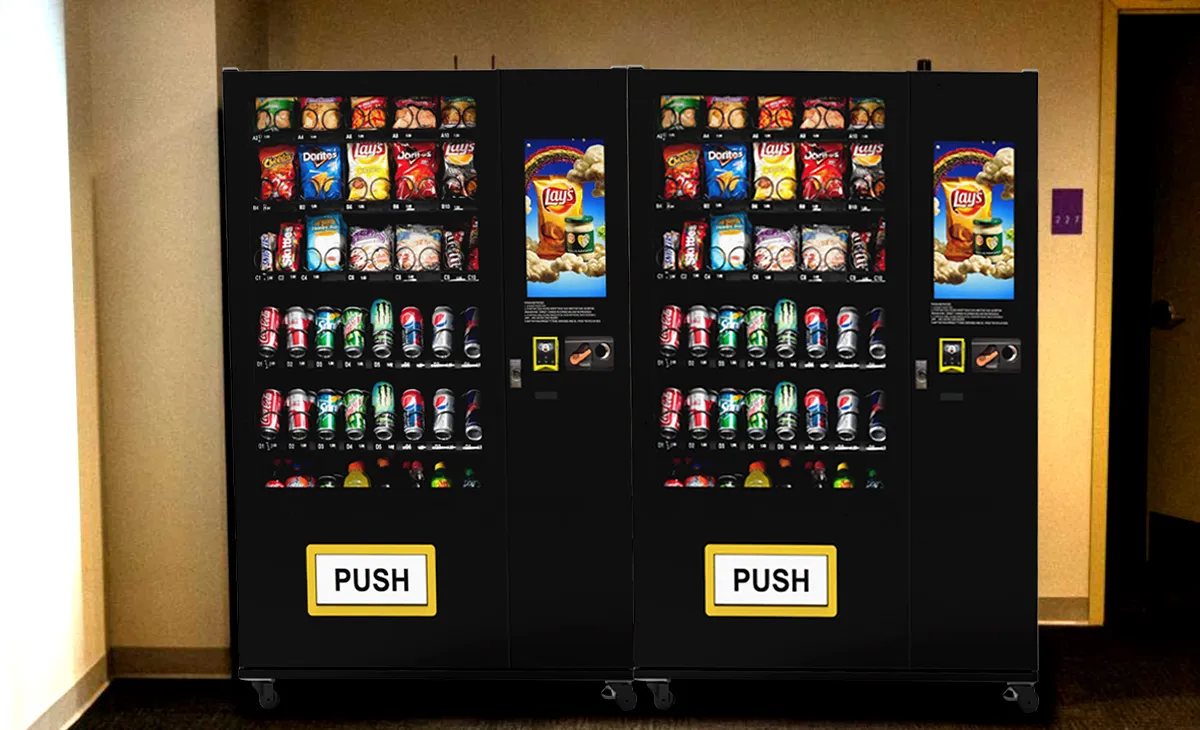

Zhongda Smart’s multi-payment snack and beverage vending machine shows how payment becomes part of a complete machine specification rather than a standalone reader. The documented configuration includes a touchscreen, 60 cargo lanes, network connectivity, QR payment, card payment, cash, coins, payment-code options, membership functions, refrigeration, and configurable software features.

The useful point is not that every project should use that exact machine. It shows the number of systems that meet at checkout: payment hardware, screen software, controller, product channels, network connection, cooling system, and remote functions.

Decide What the Screen Should Do When a Payment Method Fails

If the card terminal goes offline while QR remains available, the screen should stop offering card payment instead of sending customers toward a dead terminal. If cash has no change, the interface should show the appropriate cash state. If every payment method is unavailable, the machine should stop new purchases cleanly.

This is graceful degradation. A single failed subsystem should not unnecessarily disable the rest of the machine.

Document Replacement Procedures Before Shipping

A field technician should know how a failed reader can be removed, replaced, connected, provisioned, tested, and returned to service. A machine that requires software development every time a terminal is replaced will be difficult to operate at scale.

Factory Payment Validation Checklist

One successful card transaction is not enough to prove that a production machine is payment-ready. Commissioning should include normal transactions, failed transactions, network faults, repeated inputs, recovery behavior, and the connection between payment approval and product delivery.

Zhongda Smart’s documented OEM workflow includes sample building, vend-reliability testing, payment/connectivity validation, UI review, production checks, aging tests, and final acceptance. The exact factory test matrix should be matched to the payment configuration and dispensing hardware selected for the project.

Card and NFC Validation

• Terminal powers up correctly

• Terminal communicates with the vending controller

• Successful card transaction completes

• Successful contactless transaction completes where configured

• Declined transaction does not trigger a vend

• Customer cancellation returns the machine to a clean state

• Repeated tap does not create an unintended second vend

• Payment approval maps to the correct product

• Vend failure produces the expected exception process

• Reader restart returns the terminal to service

• Machine restart does not duplicate a previous order

• Remote reporting records the expected transaction status

QR Validation

• Correct dynamic order is generated

• QR session contains or references the correct amount

• Successful payment reaches the machine backend

• Wrong transaction ID is rejected

• Wrong amount is treated as an exception

• Unpaid scan does not trigger a vend

• Expired transaction does not remain active

• Duplicate payment callback does not trigger a second vend

• Delayed payment confirmation follows the defined recovery path

• Loss of network during confirmation does not create an uncontrolled vend

• Payment record and vending order can be reconciled later

Cash Validation

• Supported bills are accepted

• Unsupported or invalid bills are rejected

• Supported coins are accepted

• Credit shown on the machine matches accepted value

• Correct change is returned

• Low-change state is detected

• Exact-payment behavior works as specified

• Validator jam can be cleared through normal service access

• Cashbox removal does not damage wiring or unrelated electronics

• Power-loss behavior is understood

Delivery Validation

Payment testing should include the actual cargo system, not only a bench connection between the controller and reader. Price mapping, channel mapping, motor behavior, sensors, and product dimensions can create failures that do not appear when the payment terminal is tested by itself.

A 60-lane machine does not necessarily require thousands of identical payment transactions before shipment, but representative lanes across trays, product types, motor groups, and price groups should be exercised. Higher-risk products deserve repeated tests.

Recovery Validation

Recovery is where weak integrations are exposed. Disconnect the network before authorization. Restore it after a timeout. Restart the touchscreen after an abandoned order. Confirm that a delayed QR callback does not release a product from a new transaction. Verify that the terminal becomes available again after a controlled restart.

If the machine returns to a correct state without losing transaction traceability, field support becomes much easier.

A Simple Factory Payment Record

That type of record provides something a simple “machine passed QC” label cannot: evidence that payment and dispensing were tested as one transaction.

Designing Payment Systems for a Larger Machine Fleet

A payment setup that is manageable on one machine can become expensive when repeated across dozens or hundreds of units. Fleet operation changes the priority from “can this reader work?” to “can this reader be supported consistently?”

Standardize Terminal Models Where Practical

Every additional reader family creates another set of mounting parts, wiring diagrams, firmware versions, replacement procedures, support contacts, and technician instructions. Standardization reduces spare-parts complexity and makes service training easier.

Keep Machine Identity Consistent Across Systems

The payment platform, vending management software, service records, and physical machine label should map to one clear machine identity. If the payment provider calls a machine T-9384 while the vending backend calls it VM-018 and the service team calls it “Lobby Unit 4,” somebody needs a reliable mapping between those names.

The same rule applies to transaction IDs. A payment reference and machine order reference do not have to be identical, but each should be traceable to the other.

Separate Machine Uptime From Payment Uptime

A refrigerated machine can be cooling correctly while the card terminal is unavailable. From a mechanical perspective the machine is online; from a sales perspective it may have lost its main checkout method.

Fleet dashboards should therefore distinguish:

• Machine controller uptime

• Touchscreen application uptime

• Payment terminal availability

• Network availability

• Payment-service reachability

• Dispensing-system status

• Cooling status where applicable

Use Specific Alerts

“Machine error” tells the operator almost nothing. A useful alert can identify the affected subsystem and whether the machine can still sell through another method.

For example:

Machine: VM-018
Machine controller: Online
Card/NFC terminal: Offline
QR payment: Available
Cash: Available
Last successful card transaction: 14:32
Reader unavailable: 18 minutes
Recommended action: Check terminal connection before dispatch

This lets the operator decide whether the fault needs immediate attention or can wait for the next planned service visit.

Plan Reader Replacement as a Routine Service Job

A replacement process should cover removal, installation, connection, terminal provisioning, controller communication, test payment, test vend, and remote-reporting confirmation. The replacement should not depend on one engineer remembering an undocumented setup procedure.

Keep Commercial Configuration Out of Hard-Coded Software Where Possible

Product prices, payment availability, timeout values, machine IDs, backend addresses, and other operating settings change during the life of a machine. Configuration should be manageable through controlled settings where appropriate rather than buried in custom software that requires a new build for every change.

Leave Physical Space for Future Payment Hardware

Steel cabinets usually outlive individual payment terminals. A replaceable mounting plate, serviceable wiring path, and sensible internal clearance make future terminal changes easier.

The same principle applies to modems and antennas. A compact cabinet should still leave enough room for safe replacement and cable access.

Do Not Tie the Entire Machine Interface to One Payment Provider

Changing payment services may still require new terminals, certification, configuration, or software work, but the vending application should avoid unnecessary dependency on provider-specific screen behavior where a cleaner interface layer is possible.

The durable part of the design is the transaction sequence: create an order, confirm payment, authorize delivery, verify the vend, record the result, and recover correctly when something fails. Payment technologies can change while those responsibilities remain.

How Payment Choices Affect Different Vending Formats

A single payment recommendation cannot cover every machine. The value of card, NFC, QR, and cash changes with product price, checkout frequency, delivery mechanism, and the amount of customer interaction required before payment.

Snack and Beverage Machines

Speed matters because the purchase is usually simple. Card plus NFC provides a strong base, and the interface should keep the number of screens between selection and payment as low as practical.

QR can be useful for loyalty or stored-value programs, while cash can extend acceptance when the operator is prepared to service it. For low-value products, transaction-fee structure deserves extra attention.

Beauty, Personal Care, and Small Boxed Products

These machines often use larger touchscreens and more visual merchandising. The payment amount may also be higher than a basic drink purchase, so transaction records and failed-vend handling become more important.

QR can connect promotions or membership accounts to the sale, while contactless payment keeps ordinary checkout fast for customers who do not want an account.

Locker Vending

Payment and access control meet directly in a locker machine. The order has to map to the correct compartment, and the transaction record should identify whether the lock command succeeded.

A pickup-code or account-based QR workflow can also work well because the customer may arrive with an order already associated with a specific locker.

Elevator Vending

Elevator machines can provide a controlled delivery path for products that should not simply fall to the pickup area. Payment should be paired with good position and delivery feedback because the machine has more movement stages between authorization and collection.

Higher-Value Merchandise

If I were choosing payment architecture for expensive products, I’d rank transaction traceability, delivery verification, clear customer receipts, and refund handling above the goal of supporting the largest possible number of payment methods.

A failed vend becomes more serious as the selling price rises. The payment record should make it easy to identify the product, customer transaction, machine state, and delivery result.

Account-Based Vending

Some self-service kiosks use memberships, employee accounts, stored balances, or controlled purchasing permissions. QR and digital identity functions can become central in those deployments because the system is deciding more than whether money was paid.

The order may need to confirm account status, purchase allowance, product restrictions, or discount rules before a vend is authorized. Payment logic should remain separate enough that an account-rule failure cannot be confused with a card-processing failure.

Designing the Customer Checkout Around the Payment Hardware

Payment reliability is partly engineering and partly interface design. A technically correct terminal can still produce abandoned transactions if customers cannot tell what the machine expects them to do.

Show One Clear Next Action

After the product is selected, the screen should make the available payment choices obvious. Once a method is chosen, unnecessary alternatives can be visually reduced so the customer does not start a second payment flow by accident.

Instructions should match the terminal state. If the reader is ready for a tap, the screen can show that. If the machine is waiting for a QR confirmation, it should say so. If payment is approved and the machine is dispensing, the customer should see a delivery message rather than another payment prompt.

Do Not Hide Processing Delays

A short delay is easier to tolerate when the customer knows the machine is working. A vague frozen screen creates repeated taps, canceled orders, and support complaints.

Useful transaction messages include:

• Payment ready

• Processing payment

• Payment approved

• Payment declined

• Payment canceled

• Dispensing product

• Collect your product

• Unable to complete vend

The wording should remain short. Customers do not need a technical explanation of the processor or controller while they are buying a product.

Keep Reader and Screen Feedback Consistent

A card terminal may have its own display and lights while the machine has a separate touchscreen. Conflicting messages create confusion. If the terminal says approved, the vending interface should not continue asking for payment.

The software team needs to understand which terminal messages can be received by the machine and which remain visible only on the reader itself.

Make Recovery Obvious

When payment fails, give the customer a clear next option. That may be retrying the same method, choosing another payment method, canceling the order, or contacting support with a transaction reference.

A machine should not remain on a dead payment screen after a terminal timeout. Good recovery is part of good checkout design.

Data That Makes a Payment System Easier to Operate

Payment records become more valuable when they can be joined with inventory and machine events. Revenue totals alone do not explain why a machine is underperforming.

A Useful Transaction Record

A completed vending transaction can include:

• Machine ID

• Order ID

• Product ID

• Cargo-lane or locker reference

• Selling price

• Payment method

• Payment transaction reference

• Payment result

• Vend command status

• Delivery result

• Timestamp

• Refund or reversal status if applicable

This information supports reconciliation without requiring unnecessary sensitive payment data inside the vending application.

Payment Method Share Can Guide Hardware Decisions

If cash accounts for a tiny fraction of transactions but causes a large share of service calls, the operator has a measurable reason to reconsider it. If QR is heavily promoted but barely used, the workflow may need improvement or the feature may not justify its support cost.

The opposite can also happen. A payment method that seemed optional during purchasing may account for a meaningful share of completed sales after launch. Fleet decisions should be based on actual use rather than assumptions.

Vend Success Rate Belongs Beside Payment Approval Rate

A machine can have excellent payment approval and poor customer outcomes if the delivery system is unreliable. Track authorized vends and successful deliveries separately.

If payment approval stays stable while vend success drops, investigate mechanical delivery. If both payment attempts and approvals fall sharply, the problem may be earlier in the checkout path.

Remote Management Should Reduce Service Guesswork

Zhongda Smart’s vending machine solutions include connected machine configurations where sales, machine status, inventory, and operating information can be managed remotely. Payment data becomes more useful when it can be considered alongside those machine conditions.

A technician deciding whether to visit a machine benefits from knowing whether the fault is a payment terminal, depleted product lane, cooling alarm, cash-device problem, network interruption, or dispensing failure before leaving for the service call.

Questions to Ask Before Ordering a Payment-Ready Vending Machine

A buyer does not need to become a payment engineer, but the supplier should be able to answer detailed questions without hiding behind “supported” or “optional.” The exact configuration should be documented before production.

Card and NFC

• Which exact card terminal will be installed?

• Does it support contactless payment?

• Which NFC payment methods are enabled through the selected provider?

• Who provisions the terminal?

• Who provides merchant onboarding?

• How does the reader communicate with the vending controller?

• What happens when a card is approved but delivery fails?

• Can the reader be replaced without redesigning the machine door?

QR

• Is the machine displaying a merchant-presented QR code or scanning a customer-presented code?

• Is the QR static or dynamic?

• Does each transaction have a unique order ID?

• Does the backend verify the expected amount?

• How are duplicate callbacks handled?

• How long does a QR session remain valid?

• What happens if payment arrives after expiration?

• How does a paid QR order reach the vending controller?

Cash

• Which bill validator is fitted?

• Which coin mechanism is fitted?

• Can the machine return change?

• How does it behave when change inventory is low?

• Can cash-device status be monitored?

• How are validators cleaned and replaced?

Controller and Dispensing

• Which controller interface is used?

• Which MDB functions are supported?

• Can the controller identify a failed vend?

• What delivery sensors are fitted?

• Does every product selection map to a documented physical channel?

• Can multi-item basket sales be supported if required?

Networking and Software

• Does the machine support cellular, Wi-Fi, Ethernet, or the required combination?

• What happens when the payment connection is lost?

• Can unavailable payment methods be hidden automatically?

• Can payment-related errors be viewed remotely?

• Can terminal and machine timestamps be reconciled?

• How are software updates controlled?

Refunds and Support

• Who can issue refunds?

• Can a failed vend trigger an automatic reversal?

• What evidence does the system provide when delivery fails?

• Can support staff find a transaction from the machine order ID?

• Which error logs are available to technicians?

• What is the reader replacement procedure?

Factory Validation

• Will the final terminal model be installed during testing?

• Will successful and declined transactions be tested?

• Will failed-vend behavior be tested?

• Will network interruption be tested?

• Will QR timeout and duplicate notifications be tested where applicable?

• Will the payment record be checked against the machine sales record?

A supplier that can answer these questions has moved beyond selling a reader-ready cabinet. It is discussing a complete payment-to-delivery system.

What a Strong Vending Payment Specification Looks Like

Before production begins, the project should have one payment specification that engineering, software, purchasing, and service teams can all understand. It does not need to be a complicated document, but it should remove ambiguity.

That specification also makes quotations easier to compare. Two vending machines with the same screen size and cabinet dimensions can carry very different payment integration work.

One may include only a mounting hole and power connection. Another may include terminal mounting, controller communication, payment UI, QR backend integration, transaction reporting, failed-vend handling, and factory testing. They should not be treated as equivalent because both brochures say “cashless payment supported.”

Common Payment Integration Mistakes

Buying the Reader Before Confirming the Controller

A terminal can be excellent payment hardware and still be the wrong choice for a particular controller configuration. Confirm machine-side communication before committing to a terminal purchase.

Using a Static QR Code for a Transaction That Needs Unique Matching

If the machine needs to know which exact order has been paid, an unchanging QR destination may not provide enough transaction identity by itself. Use an order-aware backend design where required.

Treating “Paid” as the Same Thing as “Product Delivered”

Financial approval and physical delivery are separate events. Recording both makes refunds and repairs easier.

Ignoring Duplicate Messages

Network systems retry. Payment software should expect repeated notifications and make the vend command safe against duplication.

Accepting Cash Without Planning Change

A coin changer needs an operating strategy for low inventory. Simply installing bill and coin hardware does not guarantee a smooth cash transaction.

Using Payment Hardware as a Substitute for Delivery Sensing

The reader knows whether payment reached the required state. It does not know whether a bottle remained stuck in a lane. Delivery confirmation belongs to the machine.

Putting the Terminal Wherever There Is Empty Space

Payment placement should be designed around customer reach, visibility, tap behavior, service access, panel construction, and cable routing.

Leaving Refund Responsibility Undefined

Someone needs the authority and tools to handle a confirmed failed vend. That process should exist before the first customer complaint.

Testing Only Successful Transactions

A machine can complete 100 perfect payments and still fail badly on the first network timeout. Commissioning needs failure and recovery testing.

Using One Generic Error Code

Payment decline, network timeout, terminal offline, controller communication failure, motor jam, and delivery-sensor failure should not all appear as “Error 01.” Better fault categories reduce service time.

Designing the Machine So the Payment Terminal Can Be Replaced Later

Payment hardware evolves faster than a steel vending cabinet. A well-built machine should be able to receive a future terminal without replacing the entire front door whenever practical.

Use a Replaceable Mounting Area

A removable plate or adaptable mounting bracket can make terminal upgrades easier. The design should still protect the reader from unauthorized access and maintain a clean front-panel appearance.

Leave Cable Service Loops

Cables should have enough controlled slack for service without being able to catch on the door, hinge, product trays, or moving mechanisms.

Keep Power Capacity in Mind

Future readers, scanners, screens, or networking devices may have different power requirements. The electrical design should not operate permanently at the edge of its capacity.

Document Interfaces

A clear wiring diagram and controller-interface record make future integration easier. Five years later, technicians should not have to reverse-engineer the payment harness from an old machine.

Keep the Transaction Architecture Stable

The reader model may change, but the machine will still need to create an order, verify payment, authorize delivery, confirm the vend, record the sale, and recover from failures. Designing software around those states gives future payment hardware a cleaner place to connect.

How Zhongda Smart Approaches Payment as Part of a Custom Machine

Zhongda Smart builds vending machines around configurable hardware, software, payment, connectivity, branding, and dispensing requirements rather than treating every project as the same cabinet with a different sticker. Payment decisions can therefore be made alongside the product layout, touchscreen interface, controller, networking, and delivery method.

The company’s OEM documentation lists configurable card/NFC and QR payment, remote management, telemetry, sales reporting, networking, customized UI, loyalty or promotion functions, API integration options, multiple delivery systems, and sample-stage payment/connectivity validation.

That combination matters for custom payment work because changes in one layer often affect another. Adding a new terminal can change the front panel and harness. Changing from static QR to a transaction-based QR workflow can affect the touchscreen and backend. Adding a locker changes the delivery-confirmation logic. Adding cash requires room for validators, coin mechanisms, and secure collection.

A Useful Way to Define a Custom Payment Project

Instead of beginning with “I need card, QR, and cash,” define the full purchase:

• What product is being sold?

• How is it selected?

• How much does it cost?

• Which payment methods must be available?

• Which exact terminal or payment provider is required?

• Does QR need to identify an account or only a payment?

• What counts as successful product delivery?

• What should happen after a failed delivery?

• Which transaction information should be visible remotely?

• How should the machine behave when one payment method is offline?

Those answers produce a much better machine specification than a list of payment logos.

Payment Integration Should Be Proven on the Sample Configuration

A sample build gives the project team a chance to check reader position, payment timing, screen messages, order mapping, network behavior, dispensing, remote records, and service access before larger production begins.

If the project requires custom payment or software integration, I’d recommend using the sample stage to test failure cases as aggressively as successful ones. Changing software, brackets, and wiring on a sample is far easier than changing a completed production batch.

Frequently Asked Questions

What payment systems can a vending machine accept?

A vending machine can support card payments, contactless cards, NFC-enabled mobile wallets, QR code payments, bills, coins, stored-value accounts, membership systems, pickup codes, and other digital payment methods depending on its controller, terminal, software, network connection, and payment provider. A modern machine often combines several methods. Card and NFC usually form the simplest cashless base, while QR and cash are added when they provide a clear operating benefit.

What is the best payment system for a vending machine?

There is no single best method for every machine. For a general-purpose cashless machine, card and NFC are strong starting points because a single terminal can provide familiar, fast checkout. QR becomes especially useful for memberships, loyalty, stored balances, promotions, and custom software. Cash can be useful when physical payment or network-independent sales are important, but it adds collection and maintenance work.

Can I add a card reader to an existing vending machine?

Often, yes, but the controller interface, terminal model, payment service, power requirements, front-panel space, mounting method, network connection, and software behavior should be confirmed first. Physical installation alone is not enough. The upgraded machine should also be tested for approvals, declines, failed vends, communication loss, restart behavior, and transaction reporting before normal operation.

What is the difference between NFC and card payment?

NFC is the short-range communication technology used by many contactless transactions. Card payment is the financial transaction itself. A compatible vending terminal may accept inserted chip cards, contactless cards, and supported NFC-enabled phones or watches through one device. Actual acceptance depends on the terminal software and payment service, so an NFC-capable reader does not automatically support every mobile wallet.

Is QR payment cheaper than a card reader?

QR may require less front-panel hardware when the machine already has a suitable touchscreen, but the complete cost can include backend software, APIs, transaction IDs, payment callbacks, timeout logic, duplicate-message protection, reconciliation, and refund handling. A low hardware cost does not necessarily mean a low integration cost. Compare the complete transaction and support requirements rather than the visible reader price alone.

Should a vending machine still accept cash?

Cash can make sense when customers are expected to use physical money or when the operator values a payment method that does not depend on online authorization. The tradeoff is additional bill and coin hardware, collection, counting, change management, cleaning, jams, and physical security. The decision should be based on the value of additional completed sales versus the total cost of maintaining cash acceptance.

What happens if a customer pays but the product does not come out?

The machine should record payment approval and delivery as separate events. If payment was valid but the product was not delivered, the system should follow the configured reversal or refund process. A shared order ID and payment transaction reference allow the operator to identify the exact purchase. Delivery sensors and controller logs make it easier to distinguish a real failed vend from a payment complaint.

Can card and NFC payment work when the machine loses internet access?

Offline behavior depends on the terminal, payment provider, transaction rules, and risk configuration. Some payment systems may support controlled offline processing, while others require a live authorization path. A powered reader should not be assumed to accept transactions without connectivity. The selected payment provider should define the supported offline behavior before deployment.

Why can a QR payment succeed while the vending machine still shows “processing”?

The customer’s payment application and the vending machine may receive the final transaction state at different times. The payment backend has to send or expose a verified confirmation that the machine can match to the active order. Network delay, an expired session, wrong order ID, callback failure, or backend error can leave the machine waiting even when the customer sees a successful payment. The transaction should then enter a defined reconciliation process rather than triggering an uncontrolled late vend.

What is MDB in a vending machine?

MDB/ICP is a communication protocol used between the vending machine controller and compatible peripherals such as cashless readers, bill validators, and coin devices. It helps exchange vending transaction information, but it is not the financial payment network. The card terminal still depends on its payment service for authorization, and the vending machine still needs its own logic for product selection, dispensing, and delivery verification.

Can one vending machine support card, NFC, QR, and cash at the same time?

Yes, when the controller, cabinet, software, and payment hardware are designed for a hybrid configuration. Card and NFC can often share one payment terminal, QR can run through the touchscreen or scanner, and bill and coin equipment can report cash credit to the controller. The software should prevent overlapping payment sessions from creating duplicate payment or duplicate-vend conditions.

What should be tested before a payment-ready vending machine ships?

Testing should include successful payments, declines, cancellations, correct price mapping, correct product mapping, failed vends, network interruption, restart recovery, remote transaction reporting, and reader communication. QR systems should also be tested for expired sessions, wrong amounts, duplicate notifications, and late confirmations. Cash systems should be checked for bill acceptance, coin acceptance, change availability, and low-change behavior.

Technical Sources

1. EMVCo — Why EMV?
   Current EMV adoption statistics and background on EMV payment specifications.

2. NFC Forum — 2024 ABI Usage and Adoption Study
   Contactless payment usage research, including smartphone and smartwatch payment adoption.

3. EMVCo — EMV QR Codes
   Technical information covering merchant-presented and consumer-presented QR payment structures.

4. NAMA — MDB Version 4.3
   Information on the Multi-Drop Bus/Internal Communication Protocol and Version 4.3 cashless-device updates.

5. PCI Security Standards Council — PCI Data Security Standard
   Current information on PCI DSS and protection of payment account data.

Final Recommendation

Reliable vending machine payment systems are built around transaction control rather than payment logos. The machine needs to know which order is active, how much is due, when payment has reached the required state, which product may be released, whether delivery succeeded, and what financial action is required when it did not.

For a standard cashless build, I’d choose card and NFC as the foundation because they provide a direct checkout path through one unattended terminal. QR is worth adding when it supports a useful software function such as membership, loyalty, stored balance, promotion, or account-based ordering. Cash remains a practical option when its additional sales or network independence justify the mechanical and collection workload.

The strongest payment specification also covers the situations that do not go perfectly. Duplicate QR notifications should never create duplicate vends. A declined card should never release a product. An approved payment should be traceable to the controller’s vend command. A failed delivery should produce a recognizable exception. A network timeout should not leave the next customer inside the previous transaction.

For a custom machine, payment should be designed with the touchscreen, VMC, dispensing system, sensors, network, remote management, and service access from the beginning. Zhongda Smart’s OEM process supports this type of configuration by combining payment, machine hardware, software interface, connectivity, branding, product layout, and sample-stage validation in one machine-development process.

A useful final question for any supplier is simple: Can the machine trace one purchase from payment initiation through verified payment, product delivery, and final transaction record? If the answer is clear, the payment system is much easier to operate, diagnose, and scale. If the answer is vague, adding another payment method will not fix the underlying architecture.
