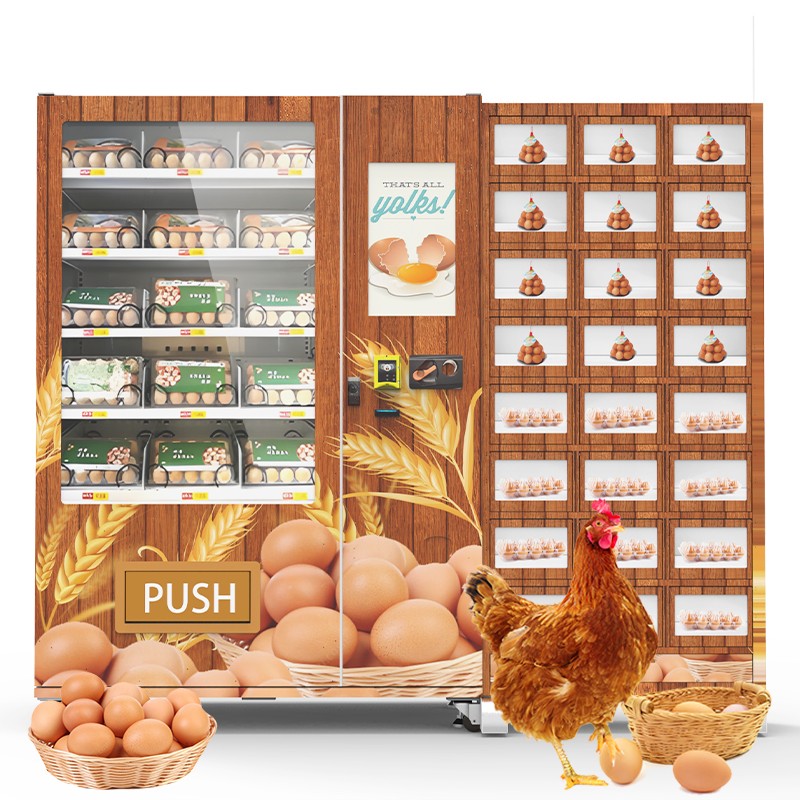

Refrigerated Egg Vending Machine with Elevator Delivery
This machine is built for unattended sales of packaged fresh eggs. Its key difference is the elevator delivery system: instead of relying on a full-height drop from the shelf to the pickup bin, the selected product is transferred to a lift platform and carried down to the collection area. That makes the delivery path better suited to fragile cartons and boxed food.
How the Elevator Delivery System Handles Egg Cartons
Eggs need a different dispensing approach from cans, bottled drinks or standard snack bags. With an elevator vending machine, the carton does not need to fall from an upper shelf all the way to the pickup area. The lift moves to the selected level, receives the product and lowers it to the customer collection point.
Product Selection
The customer chooses the egg product on the machine interface.
Lift Positioning
The elevator moves to the shelf level assigned to the selected product.
Carton Transfer
The configured cargo lane transfers the packaged eggs onto the lift platform.
Controlled Descent
The platform carries the carton down rather than leaving it to make a full cabinet-height drop.
Customer Pickup
The product reaches the collection area for customer retrieval.
Egg Carton Size, Shelf Layout and Usable Capacity
Egg cartons are not standardized worldwide. Two boxes that both contain 12 eggs can have different length, width, height, closure design and loaded weight. For this reason, machine capacity should be calculated from the real package rather than egg count alone.
The product information panel above lists the machine's standard commodity reserve. For an egg project, the usable number of cartons depends on the final shelf spacing, cargo-lane width and the dimensions of each loaded carton.
What to send for a fit check
- Carton length × width × height
- Loaded weight per carton
- Number of eggs per carton
- Number of different SKUs
- Photo of the closed package
- Expected stock quantity per refill
| Buyer Question | Practical Answer |
|---|---|
| Can it vend 6-, 10- or 12-egg cartons? | Potential fit is determined by the physical carton dimensions and weight, not by egg count alone. Send the package size for confirmation. |
| Can I load different carton sizes? | A mixed layout can be evaluated. Each SKU should be checked so shelf spacing and lane width can be configured correctly. |
| How many cartons fit in one machine? | Usable carton capacity changes with package size and internal layout. The published commodity reserve should not be treated as a guaranteed carton count without a fit calculation. |
| Can the layout be changed for my local egg packaging? | OEM/ODM configuration is available. Provide the real package data before the layout is finalized. |
Temperature Control for Refrigerated Egg Retail
The machine uses refrigerated storage with a published working temperature range of 3–12°C. Operators can use the cooling system to maintain a controlled cabinet environment during unattended retail.
Controlled Cabinet Temperature
The refrigerated cabinet is intended for products that require chilled vending rather than ordinary room-temperature storage.
Site Conditions Matter
Ambient temperature, ventilation around the cabinet and installation position can affect refrigeration load and daily operation.
Set Temperature by Market
Egg handling rules differ between countries. The operating setpoint should follow the requirements that apply to your eggs, packaging and local food regulations.
Refrigeration does not determine egg shelf life by itself. Product dating, loading rotation, sanitation and local food-safety requirements remain the operator's responsibility.
Payment, Network and Remote Operation
Touchscreen Self-Service
Customers can view available products, make a selection and complete the purchase through the vending interface without staff at the sales point.
Payment Configuration
Multiple payment options are available. The final payment hardware should be selected for the destination country, operator account and local payment requirements.
4G / Wi-Fi / LAN
The published network options support connected machine operation. Available remote functions depend on the software and hardware configuration supplied for the project.
Key Product Specifications
| Item | Published / Project Information |
|---|---|
| Product Type | Refrigerated egg vending machine for unattended retail |
| Delivery Method | Elevator delivery |
| Working Temperature | 3–12°C |
| Commodity Reserve | Configuration dependent; confirm usable carton count from the actual package size |
| Network | 4G / Wi-Fi / LAN |
| Payment | Multiple payment options; final hardware configured for project requirements |
| Operation | Touchscreen self-service vending |
| Customization | OEM / ODM available for branding and project configuration |
| Minimum Order Quantity | From 1 unit |
| Warranty | 12 months |
Final specifications should be checked against the configuration confirmed on the quotation or production order, especially where payment hardware, internal layout or market-specific components are customized.
Installation, Refilling and Routine Use
Before installation
- Confirm power and plug requirements for the destination country.
- Provide adequate ventilation around the refrigerated cabinet.
- Confirm network availability if remote functions are required.
- Use a stable, level installation surface.
- For outdoor or semi-outdoor placement, confirm the required weather protection before ordering.
During operation
- Load cartons consistently in the assigned lanes.
- Rotate stock according to your product date-control procedure.
- Keep the product area and pickup area clean.
- Check temperature and machine status as part of normal refilling.
- Test dispensing after changing a carton style or internal layout.
Elevator vs Locker vs Standard Drop Vending
| Feature | Elevator Vending | Locker Vending | Standard Drop Vending |
|---|---|---|---|
| Product movement | Product is transferred to a lift and carried to pickup level. | Customer retrieves the product from an assigned compartment. | Product normally falls into a lower collection area. |
| Why choose it for eggs | Useful when you want automated selection with a shorter, more controlled final delivery path. | Useful when direct compartment access suits the package and sales model. | Better suited to products that tolerate a conventional drop; egg-carton use requires careful evaluation. |
| Mixed package sizes | Can be configured around selected package dimensions. | Compartment sizes can be designed around different products. | Fit depends strongly on lane and package geometry. |
| Best decision factor | Package size, weight, required capacity and delivery protection. | Compartment count, package size and customer access method. | Product durability and conventional vending compatibility. |
If you are still deciding between structures, see our elevator vending machine for fragile products or send the egg-carton dimensions for a configuration recommendation.
Information We Need Before Configuring Your Egg Vending Machine
A useful quotation needs more than machine quantity and destination. The product package determines the internal layout, while the country and operating site affect payment, power, networking and service requirements.
For broader customization options, you can also review our OEM custom vending machine service.
Typical Egg Vending Applications
- Farm entrances and farm shops that need sales outside staffed opening hours
- Poultry farms selling packaged eggs directly to local customers
- Self-service food points where refrigerated products are already expected
- Regional food stores adding an unattended pickup or after-hours sales option
- Residential and community retail points with repeat household demand
- Multi-location vending projects that need connected operation and standardized refilling
Egg Vending Machine Questions
Can this machine sell 6-, 10- or 12-egg cartons?
How many egg cartons can the machine hold?
Why use an elevator vending machine for eggs?
What temperature range does the refrigerated cabinet support?
Can I sell different egg carton sizes in the same machine?
What payment methods can be installed?
Does the machine support remote management?
Can the egg vending machine be customized with my brand?
Can the machine be installed outdoors?
What information is needed for an accurate quotation?
What is the minimum order quantity and warranty?
Send Your Egg Carton Size for a Configuration Check
Include the carton dimensions, loaded weight, destination country, required payment method and expected quantity. We can then review the internal layout and prepare a project-specific quotation instead of estimating from egg count alone.
