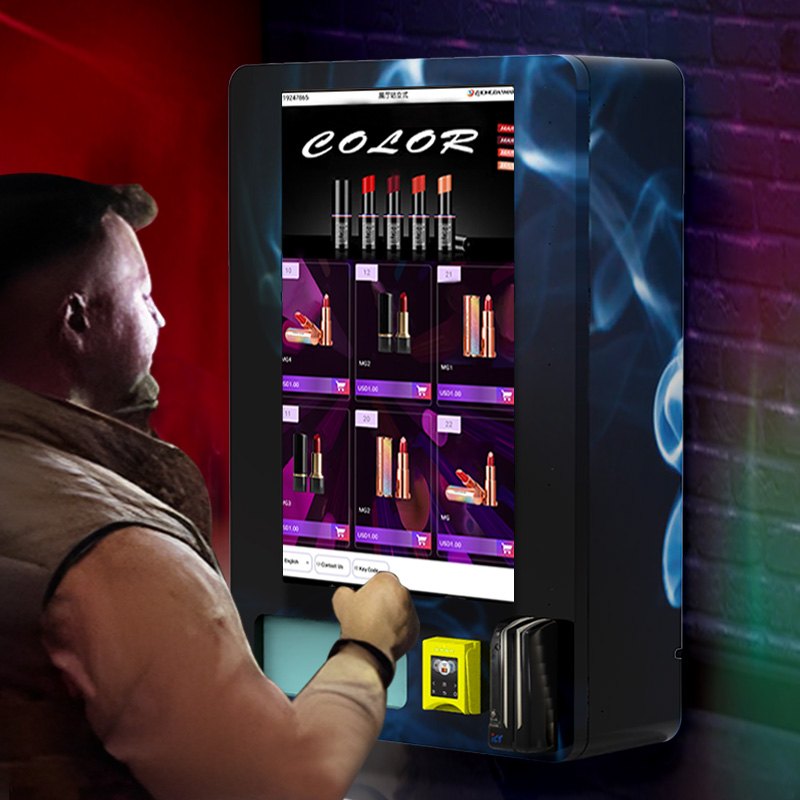

The ZD-BGS-32 Wall Mounted Vending Machine is a compact automated retail solution designed for locations where floor space is limited. Its wall-mounted structure combines a 32-inch touch screen, spring-coil dispensing system, network connectivity, payment hardware, and remote management capabilities in one space-saving machine.
With a maximum capacity of approximately 120 products, the machine can be configured for different packaged goods and commercial applications. It is suitable for retail stores, hotels, offices and other self-service locations that require convenient unattended sales without installing a conventional floor-standing vending machine.
Wall Mounted Vending Machine Overview
Key Features of the Wall Mounted Vending Machine
Space-Saving Wall-Mounted Design
Uses vertical wall space instead of occupying valuable floor area, making it suitable for compact self-service retail environments.
32-Inch Interactive Touch Screen
The large touch display provides an intuitive product-selection interface and can also be used to present promotional content.
Flexible Payment Configuration
Supports payment hardware such as cash and card payment. Additional cashless payment integrations can be configured according to the destination market and project requirements.
Remote Machine Management
Network connectivity enables operators to manage vending operations and access supported machine, sales and inventory information remotely.
Spring-Coil Dispensing System
Five product layers with configurable spring lanes provide flexible product loading for a variety of compatible packaged goods.
WiFi, 4G and LAN Connectivity
Multiple network options make the machine easier to deploy in different commercial environments.
Optional Age Verification
An optional identity or age-verification configuration is available for projects involving legally regulated products, subject to local regulations and system compatibility.
Custom Branding
Exterior graphics and sticker colors can be customized to match your brand, retail concept or installation environment.
Advertising Display Capability
The large screen can be used to display supported promotional images or video content while the machine is deployed.
What Products Can This Wall Mounted Vending Machine Sell?
The ZD-BGS-32 uses configurable spring-coil cargo lanes and is intended for compatible packaged products. The actual number of items and lane arrangement depend on the dimensions, weight and packaging of the products being sold.
Typical Product Categories
- Small packaged snacks and confectionery
- Personal care and cosmetic products
- Small accessories and everyday essentials
- Compact boxed or bagged retail products
- Other products compatible with spring-coil dispensing
Before Selecting a Lane Configuration
- Confirm product width, height and depth
- Confirm individual product weight
- Check whether the packaging can be dispensed reliably
- Determine the required number of SKUs and quantities
- Test unusual packaging before mass deployment
Where Can a Wall Mounted Vending Machine Be Used?
A wall-mounted vending machine is particularly useful where operators want to introduce unattended retail while preserving pedestrian and floor space.
- Shopping malls and retail stores
- Hotels and hospitality locations
- Office buildings and coworking spaces
- Transportation and waiting areas
- Commercial corridors and lobbies
- Self-service retail environments
ZD-BGS-32 Technical Specifications
| Product Type | Wall Mounted Vending Machine |
|---|---|
| Model | ZD-BGS-32 |
| Overall Size | Approx. H 47.24 × W 25.591 × D 11.024 in |
| Touch Screen | 32-inch touch screen |
| Maximum Capacity | Up to approximately 120 pieces, depending on product size and cargo-lane configuration |
| Standard Cargo Lanes | 5 layers, 2 cargo lanes per layer, spring-type cargo lanes |
| Dispensing Method | Spring-coil drop dispensing |
| Network | 4G / WiFi / LAN |
| Payment Configuration | Cash and credit card; other payment integrations depend on project configuration and destination market |
| Equipment Power | 50 W |
| Machine Weight | Approx. 70 kg |
| Working Temperature | Approx. 2°C–25°C |
| Exterior | Customizable sticker colors / branding |
| Installation | Wall-mounted installation; mounting surface and fixing method must be suitable for the machine load |
| Optional Function | Identity / age verification configuration available according to project requirements |
Wall Mounted Vending Machine Installation Requirements
Because the machine is installed above the floor, correct mounting is essential for safe and reliable operation. The installation method should be selected according to the wall structure, machine weight and local building requirements.
Check the Installation Surface
Confirm that the wall or supporting structure is suitable for securely carrying the approximately 70 kg machine plus loaded products.
Prepare Power and Network
Prepare the required electrical supply and select WiFi, 4G or wired LAN according to the installation environment.
Confirm Mounting Position
Select an installation height that provides convenient screen operation, product collection and routine replenishment.
Secure the Machine
Use an appropriate mounting method and hardware for the actual supporting structure. Installation should be completed by qualified personnel.
Configure Products
Adjust cargo lanes according to product packaging and verify that each selected item dispenses correctly.
Test Before Operation
Test the screen, network connection, payment configuration and dispensing process before opening the machine to customers.
Payment, Connectivity and Remote Management
Payment Configuration
The machine can be configured with cash and card payment hardware. Depending on the destination country and project requirements, additional cashless payment integrations may also be available.
Because payment standards differ between markets, the final payment solution should be confirmed before production.
Network & Remote Operation
The machine supports 4G, WiFi and LAN connectivity. Network access can be used for supported remote management functions such as checking machine operation, vending data and inventory information.
OEM & Custom Wall Mounted Vending Machine Options
For commercial projects, the wall mounted vending machine can be configured according to product type, branding and local operating requirements. Confirm your intended products and destination market before production so that the appropriate configuration can be evaluated.
Exterior Branding
Custom sticker colors and exterior graphics can be prepared for branded retail projects.
Cargo Lane Configuration
Spring-coil lanes can be arranged according to compatible product sizes and the required SKU mix.
Payment Configuration
Payment hardware can be selected according to the target market, operating model and compatible payment provider.
Network Configuration
Choose from WiFi, 4G or LAN connectivity according to the deployment environment.
Age Verification Option
Identity or age-verification hardware may be added for applicable projects, subject to local laws and technical compatibility.
Screen Content
The 32-inch display can support the machine interface and compatible promotional content for branded retail applications.
Why Choose a Wall Mounted Vending Machine?
Compared with a conventional floor-standing vending machine, a wall mounted vending machine can transform unused wall space into a self-service retail point. Its compact format is particularly useful in locations where operators want to add automated sales without reducing available floor area.
The ZD-BGS-32 combines a large touch display, configurable spring-coil dispensing, payment hardware and network connectivity in a compact structure. This makes it suitable for customized unattended retail projects where efficient use of space is an important consideration.
Wall Mounted Vending Machine FAQ
What products can the ZD-BGS-32 wall mounted vending machine sell?
It is designed for compatible packaged products that can be dispensed through spring-coil cargo lanes, including small packaged snacks, personal care products, accessories and other compact retail goods. The cargo-lane configuration should be selected according to the dimensions, weight and packaging of the product.
How many products can the wall mounted vending machine hold?
The maximum capacity is approximately 120 pieces. Actual capacity depends on product dimensions and how the cargo lanes are configured.
What payment methods does the machine support?
The standard page configuration lists cash and credit card payment. Additional cashless payment options may be configured depending on the destination country, compatible hardware and local payment provider requirements.
Does the wall mounted vending machine support remote management?
The machine supports network connectivity through 4G, WiFi and LAN. Supported remote management functions can be used to access machine, vending and inventory information according to the installed system configuration.
Does this vending machine support age verification?
An optional identity or age-verification configuration is available for applicable controlled-retail projects. Availability and use depend on local laws, identification standards and the final hardware configuration.
What should be prepared before wall mounting the machine?
Before installation, confirm that the supporting structure can safely carry the machine and loaded products. The installation location should also have suitable electrical power, network access and sufficient space for customer operation, replenishment and maintenance.
Can the wall mounted vending machine be customized?
Custom options can include exterior branding, sticker colors, cargo-lane configuration, payment hardware, network configuration and selected optional functions. Final availability should be confirmed according to the project requirements.
Configure a Wall Mounted Vending Machine for Your Project
Tell Zhongda Smart what products you plan to sell, the product dimensions, destination country, preferred payment method, estimated quantity and any customization requirements. This information helps determine the suitable cargo-lane, payment and machine configuration before quotation.
